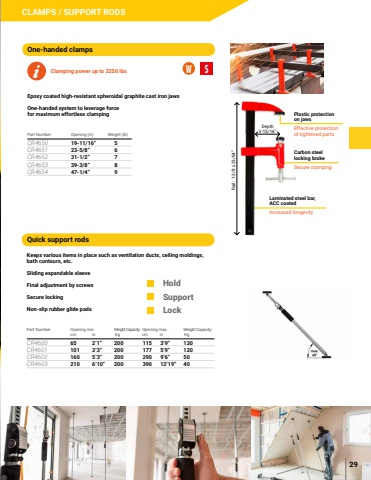

29 CLAMPS / SUPPORT RODSHoldSupportLockQuick support rodsKeeps various items in place such as ventilation ducts, ceiling moldings, bath contours, etc.Sliding expandable sleeveFinal adjustment by screwsSecure lockingNon-slip rubber glide padsPart Number Opening min. Weight Capacity Opening max . Weight Capacity cm in Kg cm in KgCR4600 65 2%u20191%u201d 200 115 3%u20199%u201d 130CR4601 101 3%u20193%u201d 200 177 5%u20199%u201d 120CR4602 160 5%u20193%u201d 200 290 9%u20196%u201d 50CR4603 210 6%u201910%u201d 200 390 12%u201919%u201d 40Plastic protection on jawsEffective protection of tightened partsDepth3-15/16%u201dCarbon steel locking brakeSecure clampingLaminated steel bar, ACC coatedIncreased longevityOne-handed clampsEpoxy coated high-resistant spheroidal graphite cast iron jawsOne-handed system to leverage force for maximum effortless clamping Part Number Opening (in) Weight (lb)CR4650 19-11/16%u201d 5CR4651 23-5/8%u201d 6CR4652 31-1/2%u201d 7CR4653 39-3/8%u201d 8CR4654 47-1/4%u201d 9Clamping power up to 2250 lbs iRail : 1-3/8 x 23/64%u201dW S
