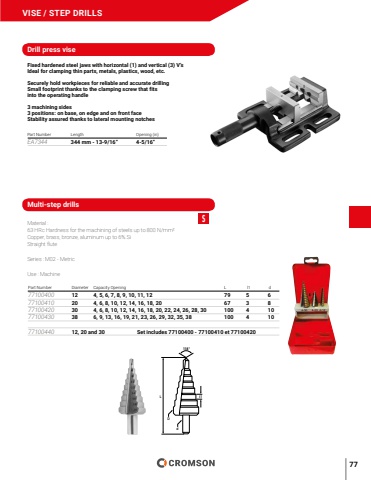

77VISE / STEP DRILLSDrill press viseFixed hardened steel jaws with horizontal (1) and vertical (3) V%u2019sIdeal for clamping thin parts, metals, plastics, wood, etc.Securely hold workpieces for reliable and accurate drillingSmall footprint thanks to the clamping screw that fits into the operating handle3 machining sides3 positions: on base, on edge and on front faceStability assured thanks to lateral mounting notchesPart Number Length Opening (in)EA7344 344 mm - 13-9/16%u201d 4-5/16%u201dMulti-step drillsPart Number Diameter Capacity Opening L l1 d77100400 12 4, 5, 6, 7, 8, 9, 10, 11, 12 79 5 677100410 20 4, 6, 8, 10, 12, 14, 16, 18, 20 67 3 877100420 30 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 100 4 1077100430 38 6, 9, 13, 16, 19, 21, 23, 26, 29, 32, 35, 38 100 4 1077100440 12, 20 and 30 Set includes 77100400 - 77100410 et 77100420Material : 63 HRc Hardness for the machining of steels up to 800 N/mm%u00b2Copper, brass, bronze, aluminum up to 6% SiStraight fluteSeries : M02 - Metric Use : MachineDLd%u21131118%u00b0S
