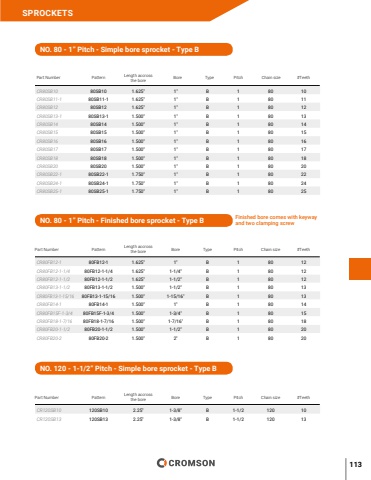

113SPROCKETSNO. 80 - 1%u201d Pitch - Simple bore sprocket - Type BNO. 80 - 1%u201d Pitch - Finished bore sprocket - Type BNO. 120 - 1-1/2%u201d Pitch - Simple bore sprocket - Type BPart Number Pattern Length accross the bore Bore Type Pitch Chain size #TeethCR80SB10 80SB10 1.625'' 1\B 1 80 10CR80SB11-1 80SB11-1 1.625'' 1\B 1 80 11CR80SB12 80SB12 1.625'' 1\B 1 80 12CR80SB13-1 80SB13-1 1.500'' 1\B 1 80 13CR80SB14 80SB14 1.500'' 1\B 1 80 14CR80SB15 80SB15 1.500'' 1\B 1 80 15CR80SB16 80SB16 1.500'' 1\B 1 80 16CR80SB17 80SB17 1.500'' 1\B 1 80 17CR80SB18 80SB18 1.500'' 1\B 1 80 18CR80SB20 80SB20 1.500'' 1\B 1 80 20CR80SB22-1 80SB22-1 1.750'' 1\B 1 80 22CR80SB24-1 80SB24-1 1.750'' 1\B 1 80 24CR80SB25-1 80SB25-1 1.750'' 1\B 1 80 25Part Number Pattern Length accross the bore Bore Type Pitch Chain size #TeethCR80FB12-1 80FB12-1 1.625'' 1\B 1 80 12CR80FB12-1-1/4 80FB12-1-1/4 1.625'' 1-1/4'' B 1 80 12CR80FB12-1-1/2 80FB12-1-1/2 1.625'' 1-1/2'' B 1 80 12CR80FB13-1-1/2 80FB13-1-1/2 1.500'' 1-1/2'' B 1 80 13CR80FB13-1-15/16 80FB13-1-15/16 1.500'' 1-15/16\B 1 80 13CR80FB14-1 80FB14-1 1.500'' 1\B 1 80 14CR80FB15F-1-3/4 80FB15F-1-3/4 1.500'' 1-3/4\B 1 80 15CR80FB18-1-7/16 80FB18-1-7/16 1.500'' 1-7/16\B 1 80 18CR80FB20-1-1/2 80FB20-1-1/2 1.500'' 1-1/2'' B 1 80 20CR80FB20-2 80FB20-2 1.500'' 2\B 1 80 20Part Number Pattern Length accross the bore Bore Type Pitch Chain size #TeethCR120SB10 120SB10 2.25'' 1-3/8'' B 1-1/2 120 10CR120SB13 120SB13 2.25'' 1-3/8'' B 1-1/2 120 13Finished bore comes with keyway and two clamping screw
