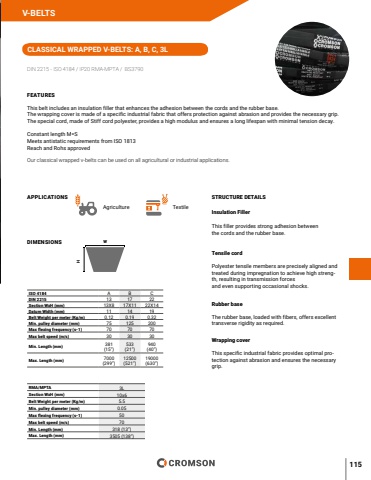

115ISO 4184 A B CDIN 2215 13 17 22Section WxH (mm) 13X8 17X11 22X14Datum Width (mm) 11 14 19Belt Weight per meter (Kg/m) 0.12 0.19 0.32Min. pulley diameter (mm) 75 125 200Max flexing frequency (s-1) 70 70 70Max belt speed (m/s) 30 30 30Min. Length (mm) 381(15%u201d)533(21%u201d)940(40%u201d)Max. Length (mm) 7000 (299%u201d)12500 (521%u201d)19000 (630%u201d)RMA/MPTA 3LSection WxH (mm) 10x6Belt Weight per meter (Kg/m) 5.5Min. pulley diameter (mm) 0.05Max flexing frequency (s-1) 50Max belt speed (m/s) 70Min. Length (mm) 318 (13%u201d)Max. Length (mm) 3505 (138%u201d)WHInsulation FillerThis filler provides strong adhesion between the cords and the rubber base.Tensile cordPolyester tensile members are precisely aligned and treated during impregnation to achieve high strength, resulting in transmission forces and even supporting occasional shocks.Rubber baseThe rubber base, loaded with fibers, offers excellent transverse rigidity as required.Wrapping coverThis specific industrial fabric provides optimal protection against abrasion and ensures the necessary grip.DIMENSIONSV-BELTSCLASSICAL WRAPPED V-BELTS: A, B, C, 3LDIN 2215 - ISO 4184 / IP20 RMA-MPTA / BS3790FEATURESThis belt includes an insulation filler that enhances the adhesion between the cords and the rubber base. The wrapping cover is made of a specific industrial fabric that offers protection against abrasion and provides the necessary grip. The special cord, made of Stiff cord polyester, provides a high modulus and ensures a long lifespan with minimal tension decay.Constant length M=SMeets antistatic requirements from ISO 1813 Reach and Rohs approvedOur classical wrapped v-belts can be used on all agricultural or industrial applications. APPLICATIONSAgriculture TextileSTRUCTURE DETAILS
