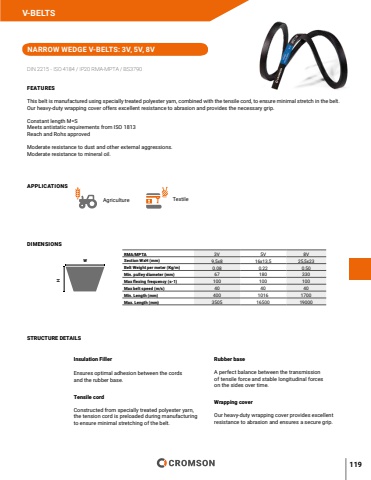

119WHInsulation FillerEnsures optimal adhesion between the cords and the rubber base.Tensile cordConstructed from specially treated polyester yarn, the tension cord is preloaded during manufacturing to ensure minimal stretching of the belt.Rubber baseA perfect balance between the transmission of tensile force and stable longitudinal forces on the sides over time.Wrapping coverOur heavy-duty wrapping cover provides excellent resistance to abrasion and ensures a secure grip.DIMENSIONSV-BELTSNARROW WEDGE V-BELTS: 3V, 5V, 8VDIN 2215 - ISO 4184 / IP20 RMA-MPTA / BS3790FEATURESThis belt is manufactured using specially treated polyester yarn, combined with the tensile cord, to ensure minimal stretch in the belt. Our heavy-duty wrapping cover offers excellent resistance to abrasion and provides the necessary grip.Constant length M=SMeets antistatic requirements from ISO 1813 Reach and Rohs approvedModerate resistance to dust and other external aggressions. Moderate resistance to mineral oil.APPLICATIONSAgriculture TextileSTRUCTURE DETAILSRMA/MPTA 3V 5V 8VSection WxH (mm) 9,5x8 16x13,5 25,5x23Belt Weight per meter (Kg/m) 0.08 0.22 0.50Min. pulley diameter (mm) 67 180 330Max flexing frequency (s-1) 100 100 100Max belt speed (m/s) 40 40 40Min. Length (mm) 400 1016 1700Max. Length (mm) 3505 16500 19000
