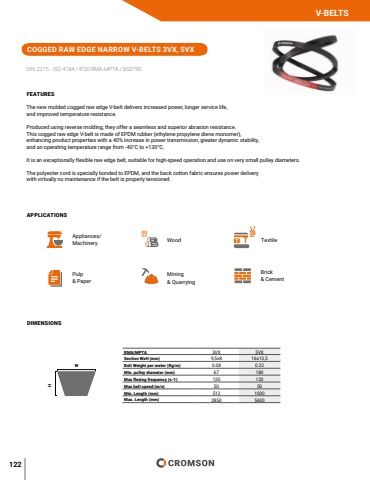

122 V-BELTS WHDIMENSIONSCOGGED RAW EDGE NARROW V-BELTS 3VX, 5VXDIN 2215 - ISO 4184 / IP20 RMA-MPTA / BS3790FEATURESThe new molded cogged raw edge V-belt delivers increased power, longer service life, and improved temperature resistance.Produced using reverse molding, they offer a seamless and superior abrasion resistance.This cogged raw edge V-belt is made of EPDM rubber (ethylene propylene diene monomer), enhancing product properties with a 40% increase in power transmission, greater dynamic stability, and an operating temperature range from -40%u00b0C to +130%u00b0C. It is an exceptionally flexible raw edge belt, suitable for high-speed operation and use on very small pulley diameters.The polyester cord is specially bonded to EPDM, and the back cotton fabric ensures power delivery with virtually no maintenance if the belt is properly tensioned.APPLICATIONSAppliances/Machinery Wood TextileMining & QuarryingPulp & PaperBrick & CementRMA/MPTA 3VX 5VXSection WxH (mm) 9,5x8 16x13,5Belt Weight per meter (Kg/m) 0.08 0.22Min. pulley diameter (mm) 67 180Max flexing frequency (s-1) 120 120Max belt speed (m/s) 50 50Min. Length (mm) 512 1000Max. Length (mm) 2850 5600
